How to test es in your local

Elastic Search Integration test

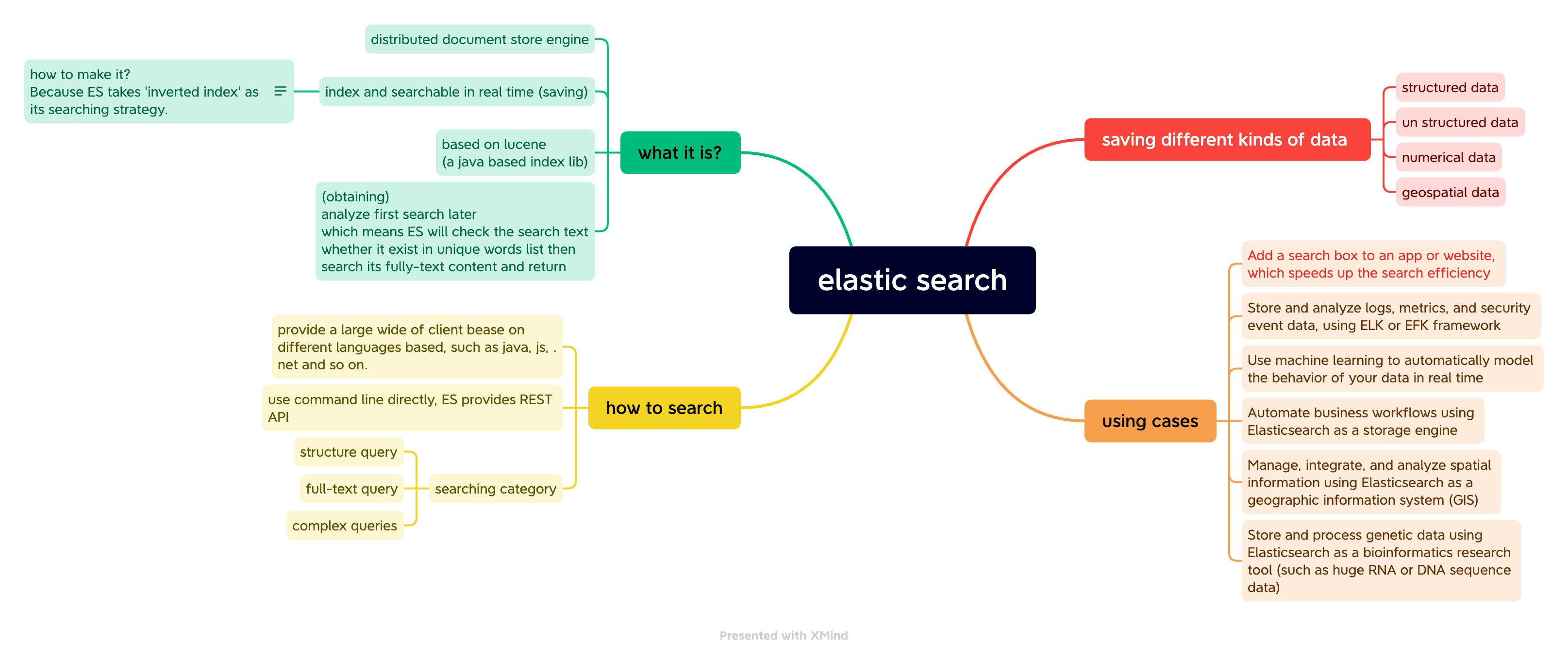

• What is the Elastic Search Engine

• How to run local elastic search
  • run docker cmd

    docker run -p 9200:9200 \
    -e "discovery.type=single-node" \
    docker.elastic.co/elasticsearch/elasticsearch:7.8.0

  • check es healthy status http://localhost:9200
• How to integrate ES in spring boot project
  • add maven dependency

    <dependency>
      <groupId>org.springframework.data</groupId>
      <artifactId>spring-data-elasticsearch</artifactId>
      <version>4.0.0.RELEASE</version>
    </dependency>

  • query methods
    • ElasticSearchRestTemplate
      • add ES configuration class, add a java bean to instantiate an ElasticsearchRestTemplate
      • autoWire ElasticsearchRestTemplate
      • add NativeSearchQueryBuilder to build query conditions
    • repository
      • add new interface to implement ElasticsearchRepository
      • add new index method to insert data into es, tip: search key-word should be included in the searched object
      • add Document annotation in operating object, which can wrapped the wanted mapping object
    • high-level REST client
      • add pom dependency

        <dependency>
          <groupId>org.elasticsearch.client</groupId>
          <artifactId>elasticsearch-rest-high-level-client</artifactId>
          <version>7.17.6</version>
        </dependency>

      • initialize rest high level client
      • use IndexRequest to build saving data
        • types
          • Json string directly, if you define an object at first, you can use ObjectMapper to execute mapper operation.
          • Map document definition then framework will convert it to Json format
        • tips: If the id is fixed, the newly indexRequest will override the previous one.
      • how to search data
        • using SearchRequest, define index name, document type
        • build SearchSourceBuilder, set query item.
        • set the source of searchRequest by SearchSourceBuilder
        • using the following cmd to verify all data

          curl -X GET "localhost:9200/<your index>/_search?pretty" -H 'Content-Type: application/json' -d
             '{
               "query": {
                  "match_all": {}
                }
              }'

    • migrate HLRC to co.elastic.clients
    • Tips:
      • Actually, if you don’t set up configurations for connecting es, like port number, ElasticsearchRestTemplate has provided the DEFAULT value 9200
• How to mock ES in spring boot integration test
  • using docker to set up a real elastic search
    • if you take the ElasticsearchRepository as your ES connector, you will start real elastic search in your local machine for test
    • step:
      • step1: set up an es by docker

        docker run -p 9200:9200 \
        -e "discovery.type=single-node" \
        docker.elastic.co/elasticsearch/elasticsearch:7.8.0

      • instantiate RestHighLevelClient by annotation @BeforeAll
      • set up restTemplate
      • functional test class extends BaseTestClass
      • write test in the specific test class and make assertions
  • using embedded elastic-search,

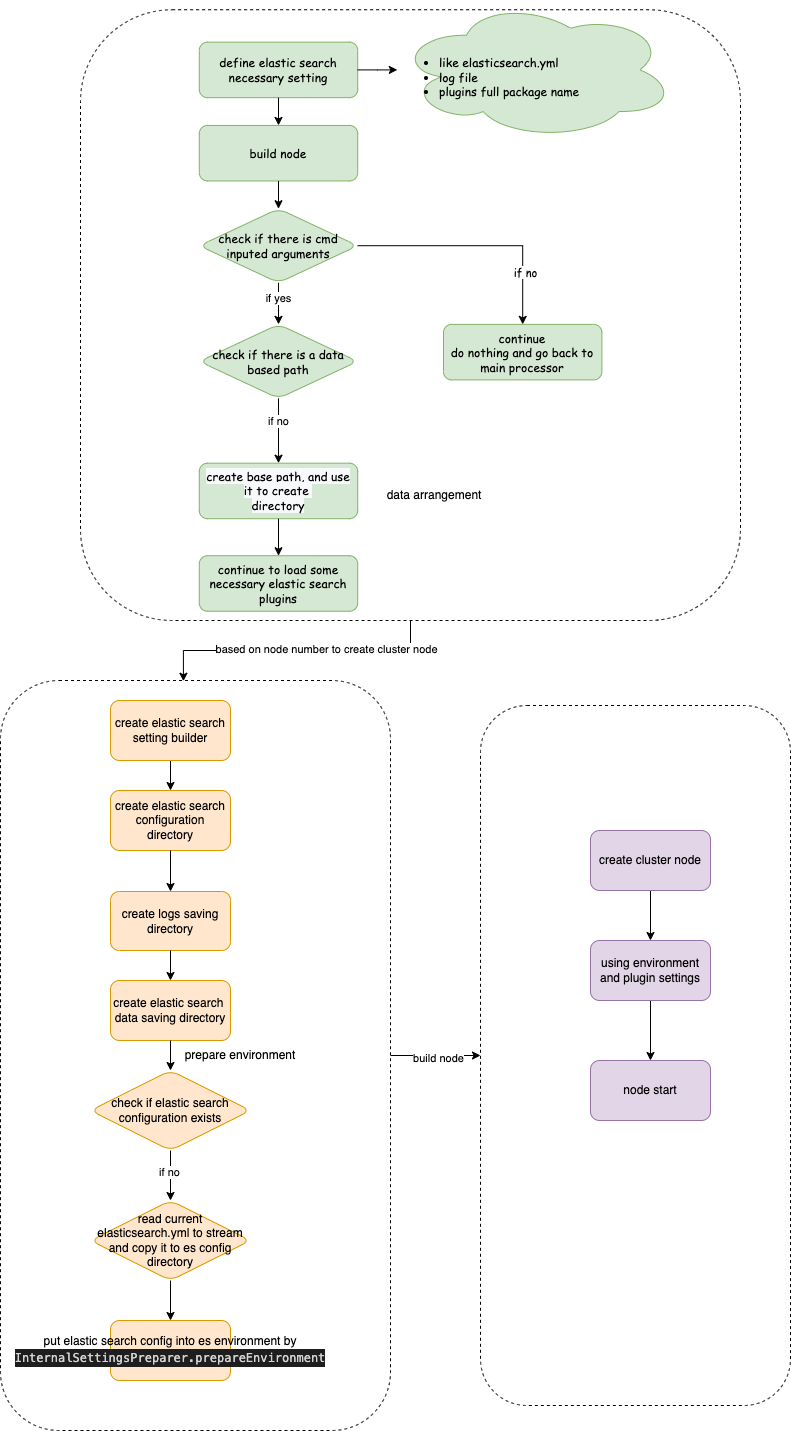

    • embedded es cluster build flow

    • add dependency

      <dependency>
         <groupId>org.codelibs</groupId>
            <artifactId>elasticsearch-cluster-runner</artifactId>
            <version>6.6.0.0</version>
            <scope>test</scope>
      </dependency>

    • build default JVM ES cluster by defining a static ElasticsearchClusterRunner
    • define default RestHighLevelClient and set port number as 9201

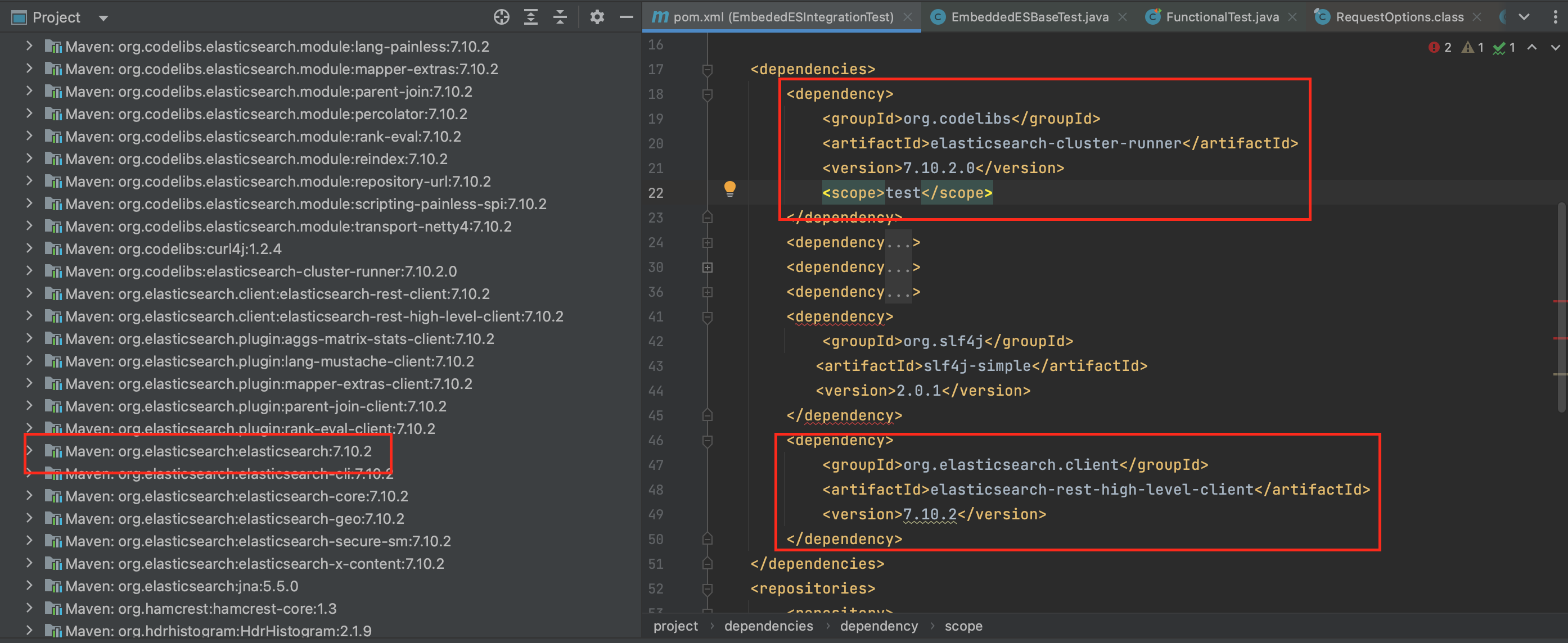

    • tips: If you want update the version of elasticsearch-cluster-runner, you must take care of the rest-high-level-client using elasticsearch version.

  • using stub to mock elastic search server
  • using ESIntegTestCase
    • Not good choice….
• migration rest-high-level-client to java-client
  • motivation
    • rest-high-level-client is deprecated since version 7.15.0, which means if you would want to use high level ES, the rhlc might take some incompatible problems.
    • rhlc used http to transport data, while elastic-search-java-api used transport protocol to transport data.
  • distinguish between the rhlc and elasitc search java api
  • how to
    • add new dependency

      <dependency>
        <groupId>co.elastic.clients</groupId>
        <artifactId>elasticsearch-java</artifactId>
        <version>8.4.3</version>
      </dependency>
      <dependency>
        <groupId>com.fasterxml.jackson.core</groupId>
        <artifactId>jackson-databind</artifactId>
        <version>2.12.3</version>
      </dependency>

    • use the same rest client
    • set up compatibility mode by .setApiCompatibilityMode(true) for rest-high-level-client
    • tips
      • if this NoClassDefFoundError: jakarta/json/spi/JsonProvider happens to application
        you can add the following dependency

        <dependency>
          <groupId>jakarta.json</groupId>
          <artifactId>jakarta.json-api</artifactId>
          <version>2.0.1</version>
        </dependency>

      • if this { "error" : "Content-Type header [application/x-www-form-urlencoded] is not supported", "status" : 406 } happens to application
        you can add a default header

        RestClient.builder(
              new HttpHost("127.0.0.1", 9201))
              .setDefaultHeaders(new Header[]{
                      new BasicHeader("Content-type", "application/json")
              })
              .build();

      • if you use the latest version elastic search, you might find out the following error:

        [2022-02-18T15:50:30,235][WARN ][o.e.x.s.t.n.SecurityNetty4HttpServerTransport] [Yusufs-MBP.home] received plaintext http traffic on an https channel, closing connection Netty4HttpChannel{localAddress=/127.0.0.1:9200, remoteAddress=/127.0.0.1:52260}

        you can define a custom elastic search docker image using custom elasticsearch.yml and close xpack.security.enabled and xpack.security.http.ssl.enabled.

source code
source code for use es in java
source code for ElasticsearchClusterRunner
